User Documentation

Phantomαs Web Designer

Author: Guillem González Vela, Emmanuel Caruyer - Firstname.Lastname@irisa.fr
License:BSD 2-Clause License
Source:Phantomαs Web Designer is on GitHub

Phantomαs Web Designer is a graphical interface for creation and edition of phantoms to be used in Phantomαs (link to Phantomαs' homepage).

Contents

1   Requirements

Phantomαs Web Designer was tested on Mozilla Firefox. Although, it is fully compatible with any modern internet navigator.

No extra software is needed.

2   Capabilities

Using this app you will be able to

  • Load or create from scratch any phantom model and save it as a JSON Phantomαs file
  • Visualize any phantom model and its structure and components individually in a lightweight, three-dimensional and fully interactive interface.
  • Add and remove fibers and isotropic regions in the phantom.
  • Change the position and the radius for any isotropic region
  • Edit the radius and the tangents' method for any fiber
  • Add, remove and edit the position of any control point in a fiber

2.1   Definition of a fiber bundle

A fiber bundle in Phantomαs is defined as a cylindrical tube wrapped around its centerline. The centerline itself is a continuous curve in 3D, and can be simply created from a few control points.

This app uses the same specifications as Phantomαs. More information may be found in its documentation.

3   Basic Usage

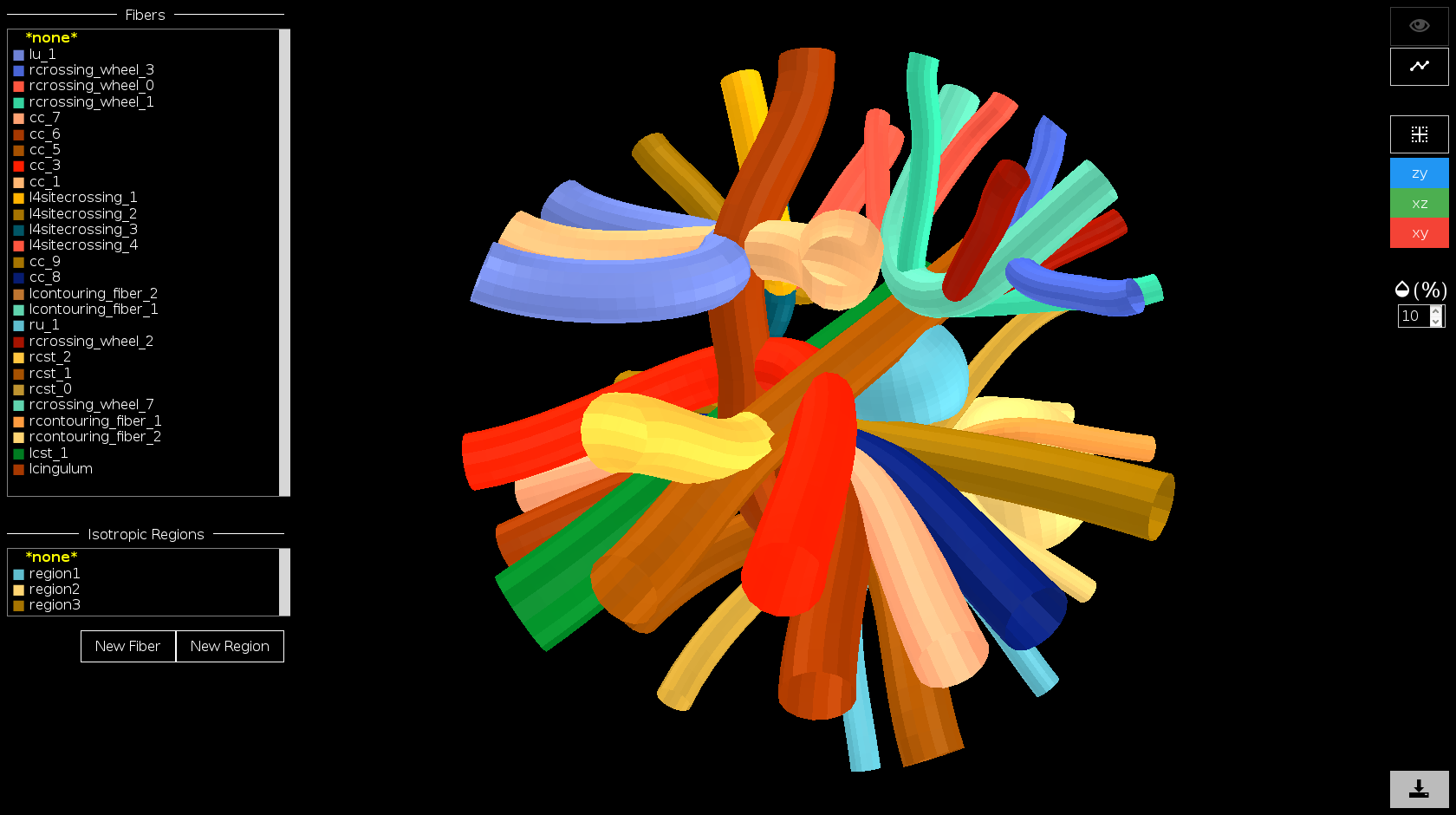

Phantomαs Web Designer divides the window in three panels:

img/capture.png

3.1   Phantom overview

The largest panel displays the current phantom layout. At start, view is from plane XY.

You may click to rotate, right-click to pan and use the mouse wheel to zoom. The view may be restored at any time by using the right panel camera placements.

To identify and view the structure of individual phantom elements, you may use the left panel element navigator.

3.2   Left panel

The left panel allows you to navigate between the different phantom elements. You may also edit those, or add and remove.

To identify the different elements you may place your mouse over the selector lists. Those will highlight while mouse is placed onto their selection option. Highlighting elements for identifying will not affect the current task.

3.2.1   Edition mode

When clicking onto an option, edition options will pop up and the element will stay highlighted. To exit edition mode, select the *none* option or press Esc. Changes are saved once those take place.

To remove an element, you must access its edition mode.

Numeral inputs allow keyboard input, although it is restricted to valid values and a 1-decimal precision by default.

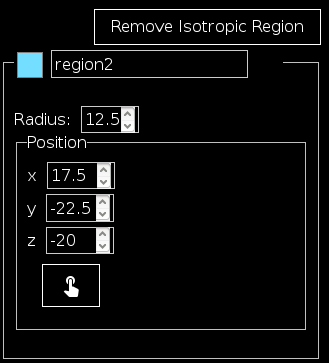

3.2.2   Editing an Isotropic Region

img/regionedit.png

The editable elements in a region concern:

  • Its name
  • Its color
  • Its radius
  • Its position (x y z)

Name and color are editable from the title fields. Click to the square representing the color for deploying color editing interface.

Drag and Drop interactive controls for editing the position of the isotropic region can be deployed by clicking the button under the position fields. When drag and drop controls are active it stays yellow (as shown in the picture) and it can be turned off at any moment by clicking over again.

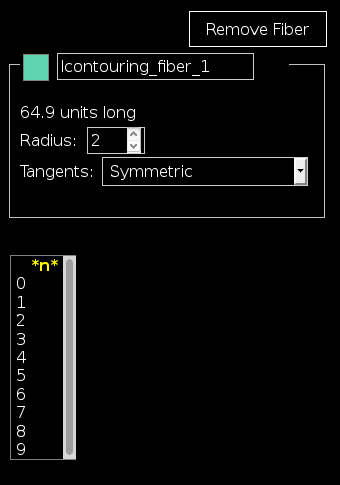

3.2.3   Editing a Fiber

img/fiberedit.png

When entering fiber edition mode, its structure will feature in the scene.

The editable elements in a fiber concern:

  • Its name
  • Its color
  • Its radius
  • Its tangent-computing mode:
    • Symmetric
    • Incoming
    • Outgoing

Name and color are editable from the title fields. Click to the square representing the color for deploying color editing interface.

A selection list for the fibers' control points is available at the bottom. Hovering those will also highglight them in the scene to help identifying.

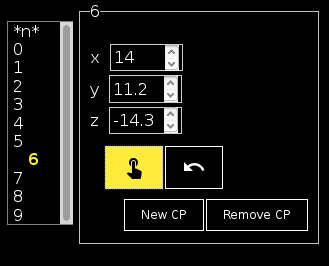

3.2.4   Editing a Control Point

Clicking over a control point in the list will pop up control point edition mode.

img/cpedit.png

Only position may be edited.

While editing and navigating through control points, those may adopt four different colors in the scene:

  • Yellow: Control points the user is not interacting with.
  • Blue: For the control point being hovered in selection list.
  • Red: Currently being edited control point.
  • Green: Position changed control point that may be saved.

A control point is saved whenever its edition is quitted. When position was changed, the former version is on the scene in red color while the one to be saved is in green. The former may be recovered by pressing the Undo button, marked with an arrow.

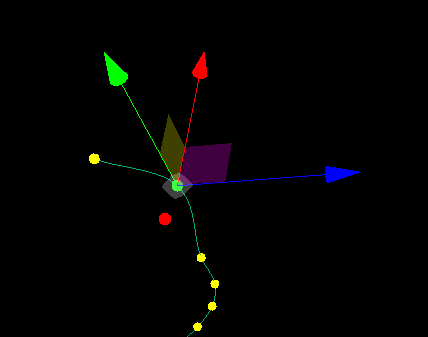

Position may be edited manually by using the given fields. As well, by clicking on the Drag and Drop button, marked with a pointer. This option will allow an interactive edition in the scene itself.

img/draganddrop.png

The interactive edition allows different liberty grades:

  • Axes, by using the arrows shown.
  • Planes, by dragging the planes formed between the arrows.
  • The screen plane, by clicking directly on the point.

New CP button creates a new control point. It is to be placed in the mid-point between the current and the next one. Remove CP removes the current control point after asking for confirmation.

Remove CP option is not available in first and last control points.

3.3   Right panel

Right panel concerns everything regarding the visualization.

img/rightpanel.png

Options are:

  • Preview Switch: Only available in editing mode. Allows the user to preview the phantom with any fade. Does not affect the edition. Unactive in the screenshot above.
  • Skeleton Swith: When activated, the whole skeleton structure for the phantom is shown at all times. Unactive in the screenshot above.
  • Axes Switch: Shows and hides the coordinates axis. Active in the screenshot above. Each axis features a different color:
    • Red for X
    • Green for Y
    • Blue for Z
  • Position: Move the scene to XY, XZ or ZY plane.
  • Opacity: Select [0 - 50%] the opacity of the faded elements.

3.4   Export Phantom

At bottom-right corner the export button allows you, at any moment, to download the JSON file for the current phantom.

The file is compatible with Phantomαs and may be loaded as well in Phantomαs Web Designer for further edition.

3.5   Keyboard Shortcuts

Keyboard shortcuts are available for most commonly used functions:

Esc Exit current edit
P Switch preview mode
W Switch skeleton structure
D Switch drag and drop controls
A Switch axes
X Move to X=0 plane
Y Move to Y=0 plane
Z Move to Z=0 plane
S Save phantom
U Undo control point edition
Del Remove current element

4   Source Code

Phantomαs Web Designer is open source and may be downloaded and forked on GitHub. Pull Requests are welcome!





This document was generated on 2017-06-09 at 16:54.
